Wall Coping Basics

Roof Online Staff, March 2019

What is wall coping? Wall coping is the protective cap or cover on a wall, typically slanted or curved to shed water, protecting the wall from water infiltration from above. According to the International Building Code, the parapet walls on a roof are required to “be properly coped with noncombustible, weatherproof materials of a width not less than the thickness of the parapet wall”. Other terms used for coping include “wall cap”, “wall cover”, “coping cover”, and, where the coping also functions as a protective counter-flashing for the top of the roof’s base flashing at the wall, “cap flashing”. Standard coping materials include concrete, metal, stone, and terra cotta (see “Types of Wall Coping”). All properly made copings should be waterproof and fireproof, should be slightly wider than the wall itself, should have drip edges on both sides to prevent water from running down the face of the wall, and should have a secondary water barrier/membrane installed underneath the coping itself.

Why a does a wall need coping? To keep water out of the wall! Water infiltration into a wall can lead to a number of things, none of them good.

When water gets into the interior of a masonry wall and then migrates out through porous masonry such as brick or concrete masonry units, it can lead to unsightly efflorescence. Efflorescence is a commonly seen white discoloration on the outside surface of a wall caused by deposits of natural salts from the wall material. The salts are absorbed by moisture as it travels through the material and then left behind when the moisture evaporates. It’s harmless but it can mar the appearance of your building.

Far worse than this is what happens when water within the structure of a wall freezes. The freeze-thaw cycle is not kind to walls. When water freezes it expands with tremendous force, and this can cause cracks in the masonry units, mortar joint failure, and a general deterioration of the wall’s structural integrity. Pieces of mortar can fall out of the joints, which will let even more water in. The masonry units themselves can become loose. Steel masonry ties and anchors can rust to the point of failure.

Wood and steel wall components fare even worse. Long-term exposure to water corrodes steel, and rusted steel can expand up to eight times its original thickness, again with tremendous force. Wood sheathing absorbs water and swells, delaminates, or falls apart (in the case of very cheap OSB). Wood framing members warp and become deformed as they repeatedly absorb moisture and dry out.

Wall coping is important.

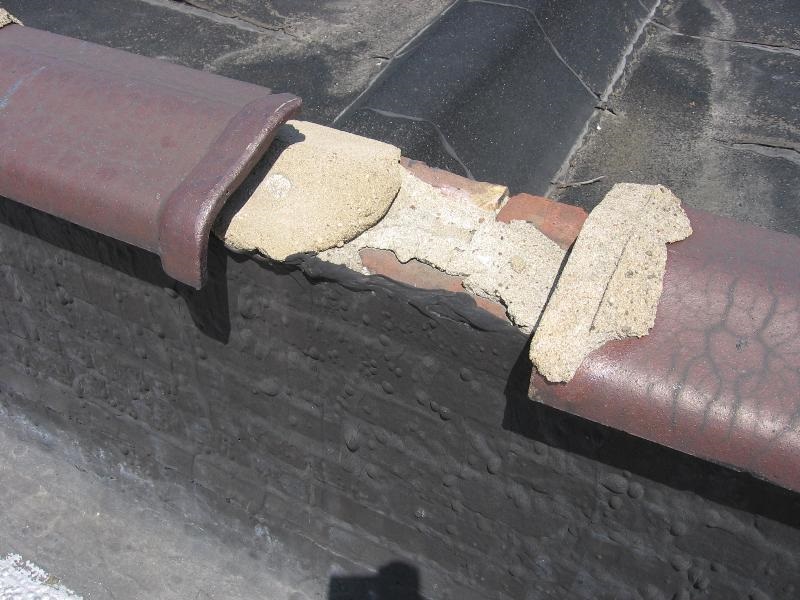

This missing piece of coping led to extensive leaking inside the building.

Things you should know about wall coping:

Wall coping as roof edge securement: Single-ply roofing membranes commonly run up the inside of the parapet wall and terminate underneath a metal coping. Where the coping functions as roof edge securement, the International Building Code requires that the coping comply with ANSI/SPRI/FM 4435/ES-1 Wind Design Standard for Edge Systems Used with Low Slope Roofing Systems (commonly referred to as “ES-1”). It’s important to verify that a proposed coping system which will serve as edge securement meets this standard before approving or installing it. Manufacturers’ websites will usually let you know if their products comply. Shop-fabricated coping should be made by a certified shop. In the US, the NRCA provides a list of authorized fabricators (see link below).

Slope: The top surface of a well-designed parapet wall coping should be slanted or curved to shed water. This reduces the chance that water will enter the wall through open coping joints or leave unsightly stains on the top of the coping as the water evaporates.  Optimally, it should be single-slanted back toward the roof to reduce the amount of water running down the exterior wall of the building, which can cause discoloration.

Drip Edges: Good copings should have drip edges on each side of the wall. This reduces the amount of water running down the surface of the wall, but more importantly, it reduces the chance that water will be able to enter the joint between the coping and the top of the wall. Although the International Building Code requires that coping be at least as wide as the wall, the coping should be slightly wider, wide enough to allow the drip edges to function properly.

Secondary waterproofing membrane: A secondary water barrier should be installed on top of the wall underneath all parapet wall copings. Coping joints and even some coping materials will typically develop cracks, become dislodged, or permit water entry in some other way as time goes by. Building sealant deteriorates. A secondary water barrier keeps a simple maintenance item from turning into an expensive repair job. This barrier is typically a layer of sheet metal, sealed at the laps, but flexible single-ply roof membrane material is often used as well, particularly under metal copings. Sometimes a single-ply roof membrane will run up the parapet and across the top of the wall, performing this function as well. It is important to seal all holes through this barrier (at fasteners, dowels, and anchors) where the coping attachment method requires the barrier to be penetrated.

Coping system as membrane edge securement and roof membrane as secondary water barrier. The metal in the picture is the cleat that the coping will be attached to.
