Complete List of Roofing Types
Roof Online Staff
Table of Contents
- About This List of Roofing Types
- Types of Steep-Slope Roofing
- Types of Shingles
- Types of Roof Tiles
- Types of Roof Panels
- Other Types of Steep-Slope Roofing
- Types of Low-Slope Roofing
- Types of Bitumen-Based Roofing
- Types of Single-Ply Membrane Roofing
- CPE Membrane (Chlorinated Polyethylene)
- CSPE or “Hypalon” Membrane (Chlorosulfonated Polyethylene)
- EPDM Membrane (Ethylene Propylene Diene Monomer)
- KEE/PVC Membrane (Ketone Ethylene Ester, Polyvinyl Chloride)
- PIB Membrane (Polyisobutylene)
- PVC Membrane (Polyvinyl Chloride)
- TPO Membrane (Thermoplastic Polyolefin)
- Other Types of Low-Slope Roofing
- Life Expectancy of Roofing Materials
- Minimum Roof Slope for Every Type of Roofing
- Types of Roof Coatings
- Weight of Roofing Materials
About This List of Roofing Types
This page provides an overview and a brief introduction to all the various types of roofing used on buildings in the world today.
By “types of roofing” we don’t just mean the primary roofing materials themselves, but also the different ways the materials can be put together to form the roof, the way they function to keep water out, and all the associated traditions, techniques, and performance attributes.
This is important to note because otherwise it is hard to be clear when talking about roofing types.
On the internet you can find many lists of “roofing types” which are really just lists of primary materials. We don’t think that’s really accurate, because the same material can fall under more than one roofing category.
“Low-slope roofing” includes more than a dozen different material types, and a specific material, let’s say copper, can be used in both low-slope and steep slope roofing.
Copper can be used in low-slope roofing, steep-slope roofing, shingle roofing, standing seam metal panel roofing, and flat seam metal panel roofing.
Talking about “copper roofing” in general is also valid, because copper will always behave in certain ways no matter what type of roofing it’s used for.
Saying “copper roofing”, though, will certainly invite the question, “What type of copper roofing?”.
We list all the types of roofing you’d be likely to hear a roofing industry professional refer to. We’ve tried to break it all down as far as we could.
We hope you like our list!
Types of Steep-Slope Roofing
This is the sort of roofing you find on a pitched roof.
For this type of roofing to function properly, the roof slope must normally be greater than 3-in-12.
Steep-slope roofing does not form a continuous waterproof membrane and it depends on gravity to rapidly shed water.
The roofing material on a steep-slope roof typically takes the form of overlapping units which are individually fastened to the roof deck or sheathing.
Types of Shingles
Shingles can be characterized as units of roofing material which are flat, relatively small, and designed to be installed in an overlapping pattern, most often in horizontal courses.
While shingles can, strictly speaking, be made out of clay or concrete, shingles made from those materials are conventionally referred to as “tiles”.
A 100 sq. ft. roof area will require around 90 individual asphalt shingles, and as many as 400 wood shingles.
First manufactured in the early 1900’s after someone had the bright idea to cut up asphalt roll roofing into shingle-sized pieces, asphalt shingles are now the most popular type of steep-slope roofing in North America by far.
Attractive due to their light weight, good water-resistance, and most of all their low cost, these shingles are produced in a huge variety of colors, styles, and thicknesses.
Today, most asphalt shingles are formed by coating a fiberglass mat with an asphalt-based mixture and embedding ceramic granules on one side to block UV rays.
Asphalt shingles can perform anywhere from 10 to 50 years, depending on the thickness and quality of the material.
- 3-Tab Shingles
- Architectural (Dimensional or Laminate) Shingles
- Hexagonal Shingles
- T-Lock Shingles
Fiber Cement Shingles
In use as a roofing material for about a century, fiber cement is made by using fibers to reinforce Portland cement.
Originally, these fibers were asbestos, but fiber cement shingles today are manufactured with cellulose and synthetic fibers.
These shingles are durable, fire-resistant, and relatively light-weight. They can be colored and formed to look like slate or wood shingles.
They are lighter and more fragile than clay or concrete, but they can last up to 50 years.
Because they last so long, old fiber cement shingles in place today may contain asbestos, so appropriate care should be taken when cutting or removing them.
- Asbestos Fiber Cement Shingles
- Cellulose Fiber Cement Shingles
Most metal shingles could be better described as small metal panels.
Instead of being individually fastened to the roof deck and overlapping like shingles do, they have interlocking edges and are held in place with clips. The clips are fastened to the deck and usually secure two adjacent metal shingles.
These sheet metal shingles tend to be the size of a 3-tab strip shingle, and are usually formed to mimic the texture of slate or wood shingles.
They are light-weight, come in practically any color, and can last 50 years or more.
Less common are metal shingles which function like real shingles: small flat pieces fastened individually through pre-drilled holes and installed in overlapping rows.
- Aluminum Shingles
- Copper Shingles
- Stainless Steel Shingles
- Steel Singles
- Zinc Shingles
Prized for its stately appearance, slate is heavy, very long-lasting, and expensive.
It’s often found on older, traditional government and university buildings, as it lends an air of permanence and seriousness to a structure. Some of those slate roofs may well be original, as thick, high-quality slate roofing can last for centuries.
Slate is a natural stone material which comes from a quarry. It is often gray, but available in many colors, including red and green, depending on the quarry.
Most houses designed with asphalt shingles in mind will not be able to support the weight of a good slate roof, so if you’re considering slate, you’ll need to look into this.
Slate installation requires experience and precision; slate roofs should be installed by slate roofing specialists.
- Hard Slate
- Soft Slate
Called “composite shingles” by manufacturers, synthetic shingles are also known as “synthetic slate”, “artificial slate”, “synthetic shake”, etc.
These products are basically plastic shingles, often made with a significant amount of recycled material. They are manufactured via injection molding, using the roofing material (slate, tile) that the finished composite product will resemble to form the molds.
Material warranties of up to 50 years are common.

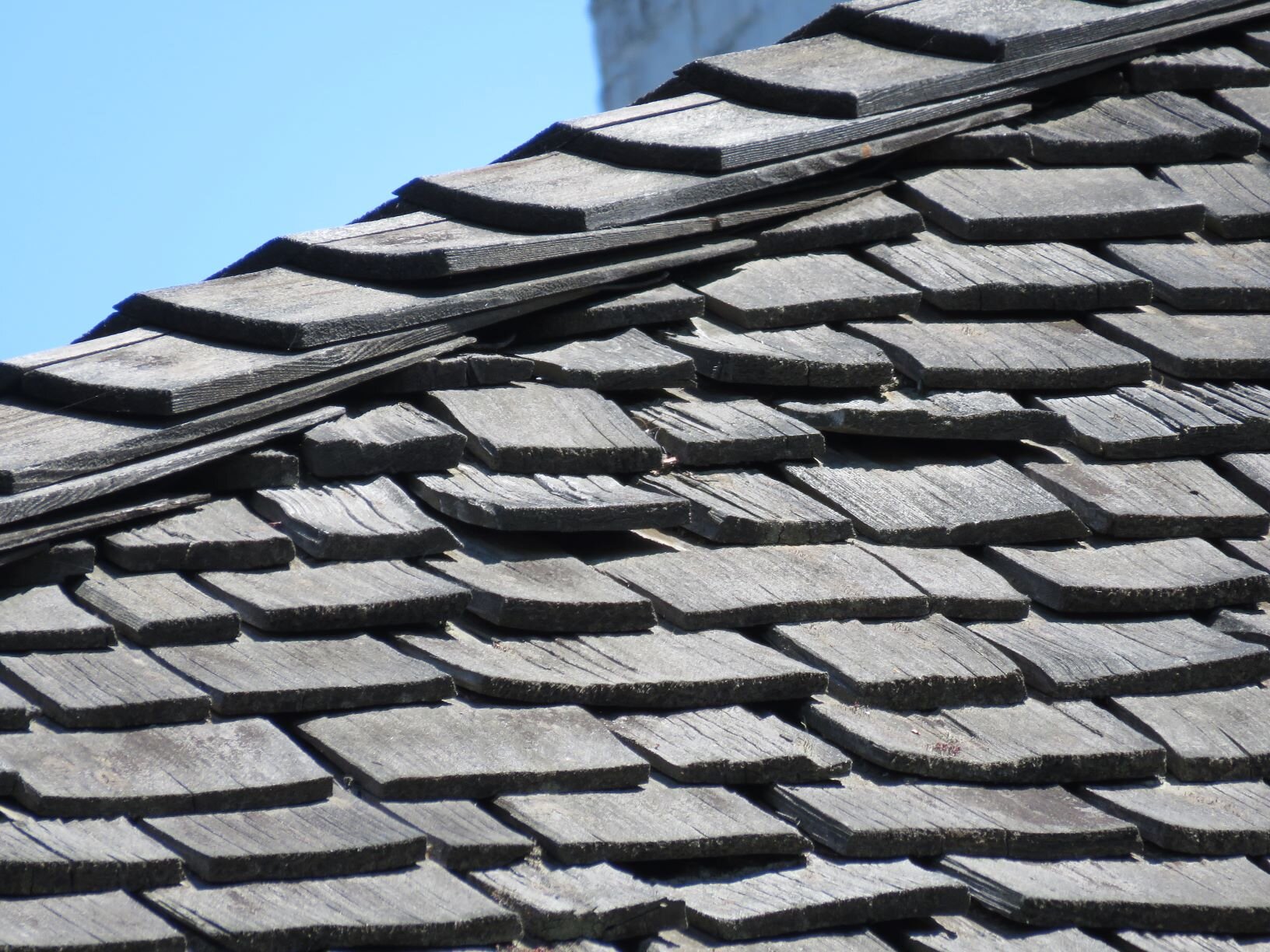

Wood Shakes and Shingles
Many different wood species make good shingles, including white cypress and redwood, but cedar makes up the overwhelming majority of wood shingles manufactured today. Cedar is usually what people think of when they think of wood shingles.
Although certain jurisdictions ban or restrict wood shingles as a fire hazard, “Class A” fire ratings for wood shingle roofs can be achieved with fire-resistant treated shingles and fire-resistant underlayments.
- Wood Shingles
- Wood Shakes
Types of Roof Tiles
A roof tile is an individual roofing unit made out of fired clay or another material that resembles fired clay tile in appearance and strength (mainly concrete).
Some metal panels are manufactured to look like clay tile and are called “metal tiles”, but they are much larger, thinner, and structurally weaker than clay tile.
Roof tile is designed to be installed in overlapping horizontal courses like shingles. While tiles can be flat and installed essentially like shingles, they more commonly have curved profiles, and fit together so that the bottom, cupped section carries water off the roof, and the top, arched section covers the joint between two tiles and keeps water out.
Roof tile was one of the very first manufactured roofing materials, known to be in use at least 4,500 years ago.
- Flat Tile
- Spanish Tile (Barrel, S-Shaped)
- Two-Piece (Barrel, Mission)
Types of Roof Panels
Essentially, a roofing panel is a large, rigid or semi-rigid roofing unit formed from some type of sheet material.
Panels can be flat, corrugated, or shaped to resemble shingles or tiles. They can be installed with interlocking seams or joints, or they can overlap to shed water like big roof tiles.
Many simple panels are intended for use on canopies, pavilions, and outbuildings like barns or sheds, where minor water intrusion is not considered much of an issue.
High-quality metal panels for residential or commercial roofs consistently outlast and outperform cheaper roofing materials such as asphalt shingles.
Standing Seam Metal
Flat Seam Metal
Corrugated Asphalt Panels
Corrugated Fiber Cement Panels
Corrugated Fiberglass Panels
Corrugated Metal Panels
Corrugated PVC Panels
Insulated Roof Panels
Metal Tile Roofing Panels
Polycarbonate Roof Panels
Ribbed Metal Panels
Stone-Coated Steel Panels
Other Types of Steep-Slope Roofing
Other types of roofing materials are used, but are not appropriate for most steep-sloped structures. These can be considered “niche” roofing materials, and are intended for use in special, atypical roofing applications.
Ever been to a tiki bar? When used on a real building, artificial thatch isn’t used for waterproofing. It’s there for the aesthetics, and it’s generally installed on top of some sort of continuous waterproofing membrane that performs the actual function of a roof.
Stone Shingles (Other than Slate)
Types of Low-Slope Roofing
Low-slope roofs are often called “flat roofs”, although it’s extremely rare for a roof to actually be completely flat.
Good roof design will ensure that all roofs have at least some slope, so water can drain off of them. Water is corrosive and you don’t want it sitting on a roof for any longer than it has to.
Any roof with a slope of less than 3-in-12 can be considered a low-slope roof, and the roof covering on a low-slope roof is called a “membrane”.
Because of the low slope, these roofs do not shed water very quickly, high winds may cause water to actually move up-slope, and water may sit on some parts of the roof for days.
Because of these conditions, a proper low-slope roof membrane must form a continuous barrier against water entry.
Types of Bitumen-Based Roofing
One of the oldest waterproofing materials known, bitumen (which in the roofing industry today refers to both asphalt and coal tar pitch) formed the great bulk of all flat roofing installed in the 20th century.
With their durable and redundant layers, bitumen roofs provide excellent protection against hail and foot traffic.
Installation commonly requires special kettles for heating mop-applied bitumen (think of the roofing scene in the Shawshank Redemption), or propane torches for roll products, although these can also be applied using special cold adhesives or even fasteners in some cases.
Built-Up Roofing (BUR)
- Asphalt BUR
- Coal Tar Pitch BUR
- Asphalt (Hot) Roofing: Reference Page
- Built-Up Roofing: Reference Page
- Built-Up Roof System Manufacturer Directory
- Coal Tar Pitch Roofing: Reference Page
- Coal Tar Pitch Roofing Manufacturer Directory
- Roofing Asphalt (Hot) Manufacturer Directory

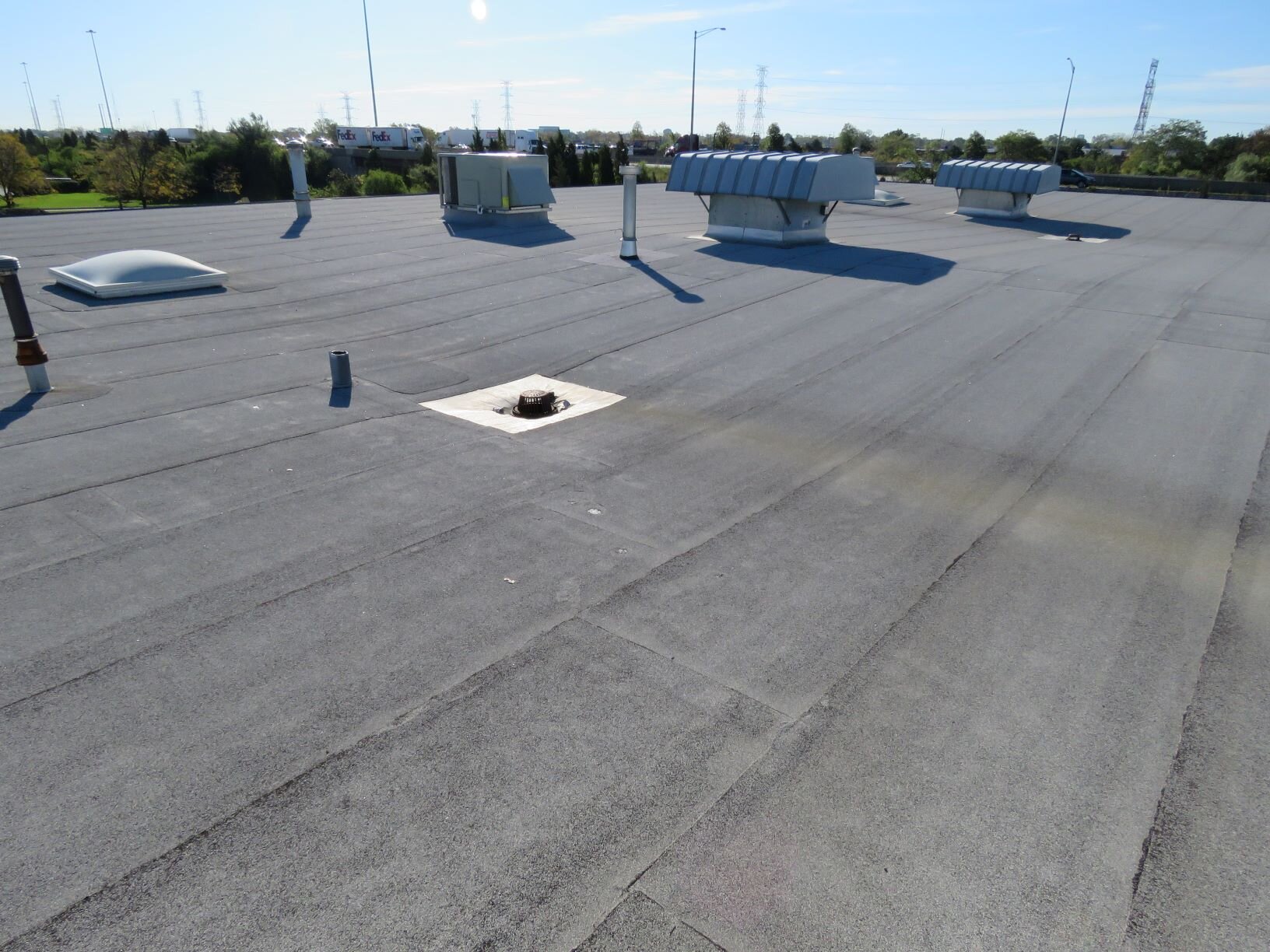

Modified Bitumen Roofing
- APP Mod Bit
- SBS Mod Bit
Types of Single-Ply Membrane Roofing
Now used in over 75% of new commercial low-slope roof installations, single-ply roofing is a relatively cheap alternative to traditional bitumen roofs.
Single-ply roofing is installed in giant sheets, which are seamed together using adhesives, adhesive tape, or hot-air welders.
The life expectancy, length of available warranties, and the price of these roofing materials go up as the thickness of the membrane increases.
Membrane puncture is a common cause of leaks on these roofs, so care must be taken when walking or working on them.
CPE Membrane (Chlorinated Polyethylene)
CSPE or “Hypalon” Membrane (Chlorosulfonated Polyethylene)
EPDM Membrane (Ethylene Propylene Diene Monomer)
- Ballasted EPDM
- Fully-Adhered EPDM

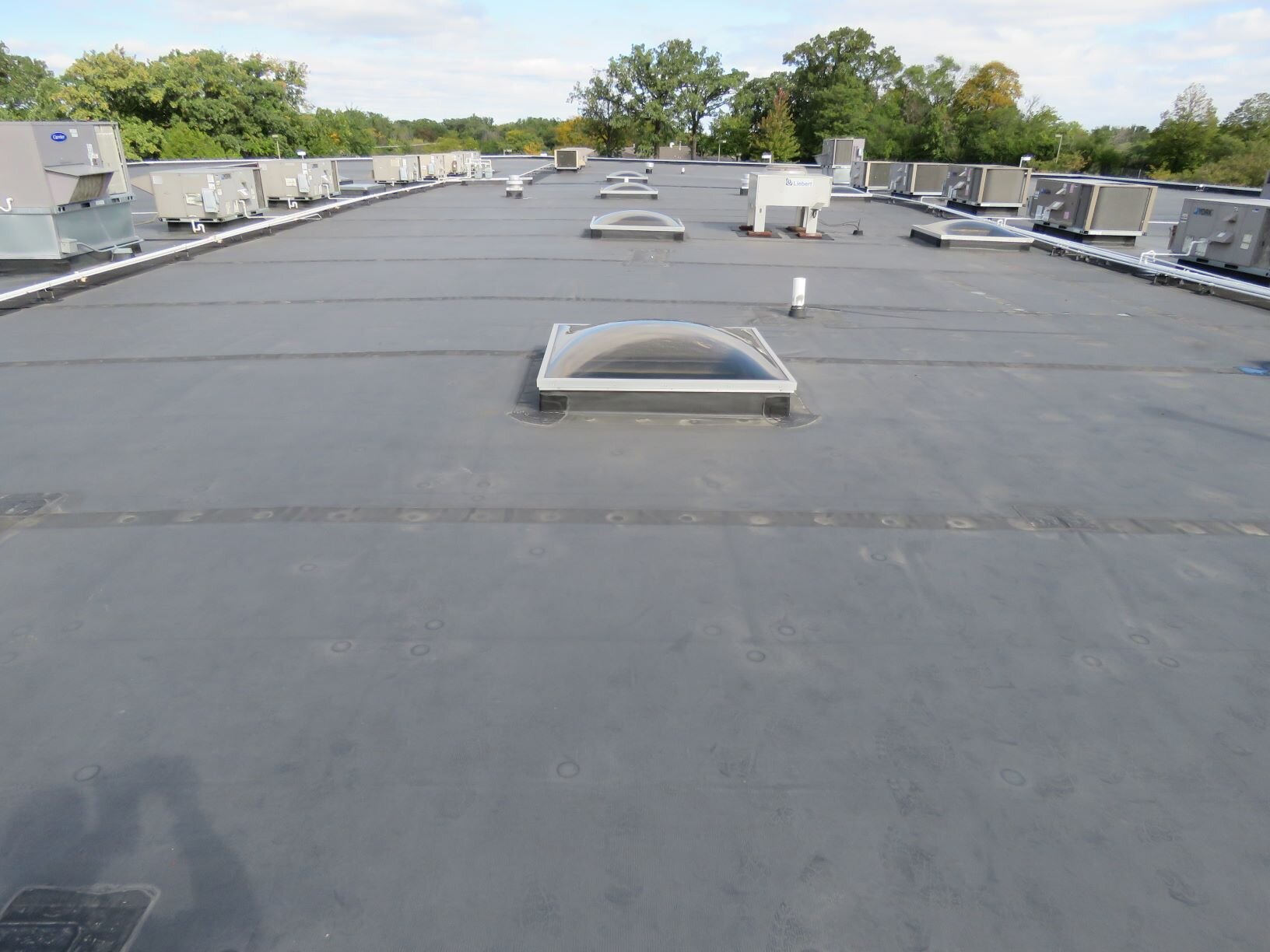

- Mechanically-Attached EPDM
KEE/PVC Membrane (Ketone Ethylene Ester, Polyvinyl Chloride)
PIB Membrane (Polyisobutylene)
PVC Membrane (Polyvinyl Chloride)
- Fully-adhered PVC
- Mechanically-attached PVC
TPO Membrane (Thermoplastic Polyolefin)
- Fully-adhered TPO
- Mechanically-attached TPO
Other Types of Low-Slope Roofing
There are other kinds of low-slope roof systems, although some of them don’t actually use different materials from the ones already mentioned.
A “solar roof system” is usually a series of solar panels installed on top of a single-ply membrane.
A “green roof” is often a layer of vegetation installed over a concrete roof deck that has been covered with bituminous waterproofing.
Structural metal panels and spray polyurethane foam are entirely different systems, however.
Protected Membrane Roofs
Solar Roof Systems
Spray Polyurethane Foam

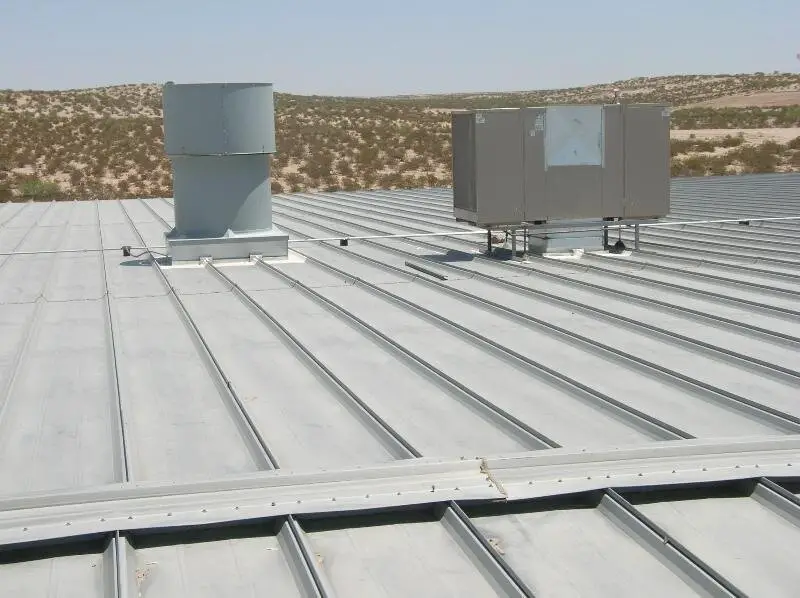

Structural Metal Panels
Vegetative Roof Systems
